Mech Mod: Explore 7 Reasons for Your Vaping Journey

What is a Mech Mod? Are Mech Mods for You?
Table of Contents

    A mechanical mod, or mech mod, is a vaping device with no electronics at all: a metal tube or box, a battery, a switch, and an atomizer, wired together with nothing in between. Press the switch and the battery’s full voltage goes straight to the coil. There is no chip to stop you from making a mistake, no screen to warn you, and no cutoff if something goes wrong. That simplicity is the entire appeal, and the entire danger. Mech mods are for experienced users who understand battery safety and Ohm’s law and accept full responsibility for the math. For everyone else, including most experienced vapers, a regulated mod is the better device.

    How does a mech mod work?

    The circuit could not be simpler. A battery sits in the tube. One end connects to the atomizer’s positive pin; the other connects through the switch to the atomizer’s body. When you press the switch, the circuit closes and current flows through the coil, heating it. When you release the switch, the circuit opens. That is everything. There is no wattage setting: the power delivered depends entirely on the battery’s voltage and the coil’s resistance, following Ohm’s law. A freshly charged lithium-ion battery delivers 4.2 volts; as it drains, voltage falls toward 3.7 volts nominal and below, and the vape gets progressively weaker. There is no regulation to compensate, no boost, and no low-battery warning except the weakening hit.

    Mech mods come in a few forms: single-tube (one 18650 or 21700 cell, the classic), stacked-tube (two cells in series, doubling voltage to 8.4V, for experts only), parallel-box (two cells sharing the current load), and squonk mechs (with a squeeze bottle feeding e-liquid to a bottom-fed atomizer). The safety rules below apply to all of them, with extra rules for multi-cell devices.

    What protections do you give up?

    Protection Regulated mod Mech mod
    Short-circuit protection Chip detects a short and refuses to fire None: a short draws maximum current until the battery vents or the coil fails
    Low-resistance cutoff Refuses to fire below a minimum resistance None: any coil, however low, fires if the circuit closes
    Over-discharge protection Stops firing when the battery is low None: you must notice the weakening hit and stop; over-discharging damages the cell
    Overheat / timeout cutoff Stops firing after ~10 seconds or if the chip overheats None: a stuck switch fires until something fails
    Reverse-battery protection Chip prevents damage from a backwards battery None: inserting the battery backwards can cause a hard short
    Consistent power Regulated output stays constant as the battery drains None: power falls with voltage from the first puff

    Every one of those protections exists because the failure it prevents has injured people. A mech mod removes all of them at once. That is the trade, stated plainly.

    Do the math: Ohm’s law, with real numbers

    Ohm’s law is not optional knowledge for mech mod users; it is the only safety system the device has. The two formulas you need: current (amps) = voltage รท resistance, and power (watts) = voltage ร— current. Always calculate with a fresh battery at 4.2 volts, the highest voltage the battery will deliver, because that is the worst case for current draw.

    Coil resistance Current at 4.2V Power at 4.2V Verdict
    0.5 ohm 8.4 A 35 W Within the rating of any genuine 15A or 20A cell
    0.3 ohm 14 A 59 W Within a 15A cell, but with almost no margin; a 20A cell is the sensible minimum
    0.2 ohm 21 A 88 W EXCEEDS the continuous rating of Samsung 30Q (15A), Sony/Murata VTC6 (15A), LG HG2 (20A), and Samsung 25R (20A) โ€” all four cells from verified datasheets
    0.15 ohm 28 A 118 W Exceeds nearly every 18650 cell’s continuous rating; do not build this low without a cell rated above 28A continuous

    The rule: the coil’s calculated current draw must stay BELOW the battery’s continuous discharge rating (CDR), with margin. Use the CDR from the manufacturer’s datasheet or an independent test, never the “pulse” or “max” rating printed on a rewrapper’s label, which can be double the CDR and means nothing for sustained firing. If the math says 21A and your cell is rated 20A continuous, the build is unsafe, full stop. Rebuild higher or choose a different cell. No forum post, no YouTube video, and no shop employee’s assurance overrides arithmetic. For real cell ratings and how to spot rewrapped cells, see our replaceable vape batteries guide.

    What are the battery rules?

    • Buy authentic cells from reputable vendors. Counterfeit and rewrapped cells are common, and their printed ratings are fiction. Stick to cells from Samsung, Sony/Murata, LG, or Molicel, bought from a vendor that specializes in batteries.
    • Inspect the wrap before every use. A torn or nicked wrap can short the battery against the metal tube. Rewrap or retire any cell with wrap damage; wraps cost almost nothing.
    • Never use a dented, hot, or swollen cell. Physical damage and heat are signs of internal failure. Retire the cell safely (battery recycling, never household trash).
    • Use a case. Loose batteries in a pocket with keys or coins can short and vent. Always carry cells in a plastic battery case.
    • Marry your pairs. In a dual-battery mech, the two cells must be the same model, bought together, always used and charged together. Mixed cells discharge unevenly, and the weaker cell gets stressed beyond its rating.
    • Know series vs. parallel. In series, voltage doubles (8.4V fresh), so the same coil draws twice the current; in parallel, the current load is shared. Series mechs demand even more conservative builds.
    • Charge properly. Use a quality external charger, never leave charging cells unattended, and do not charge a cell that was dropped, dented, or overheated. The FDA’s vape battery safety guidance covers the full list.

    What is the hybrid 510 danger?

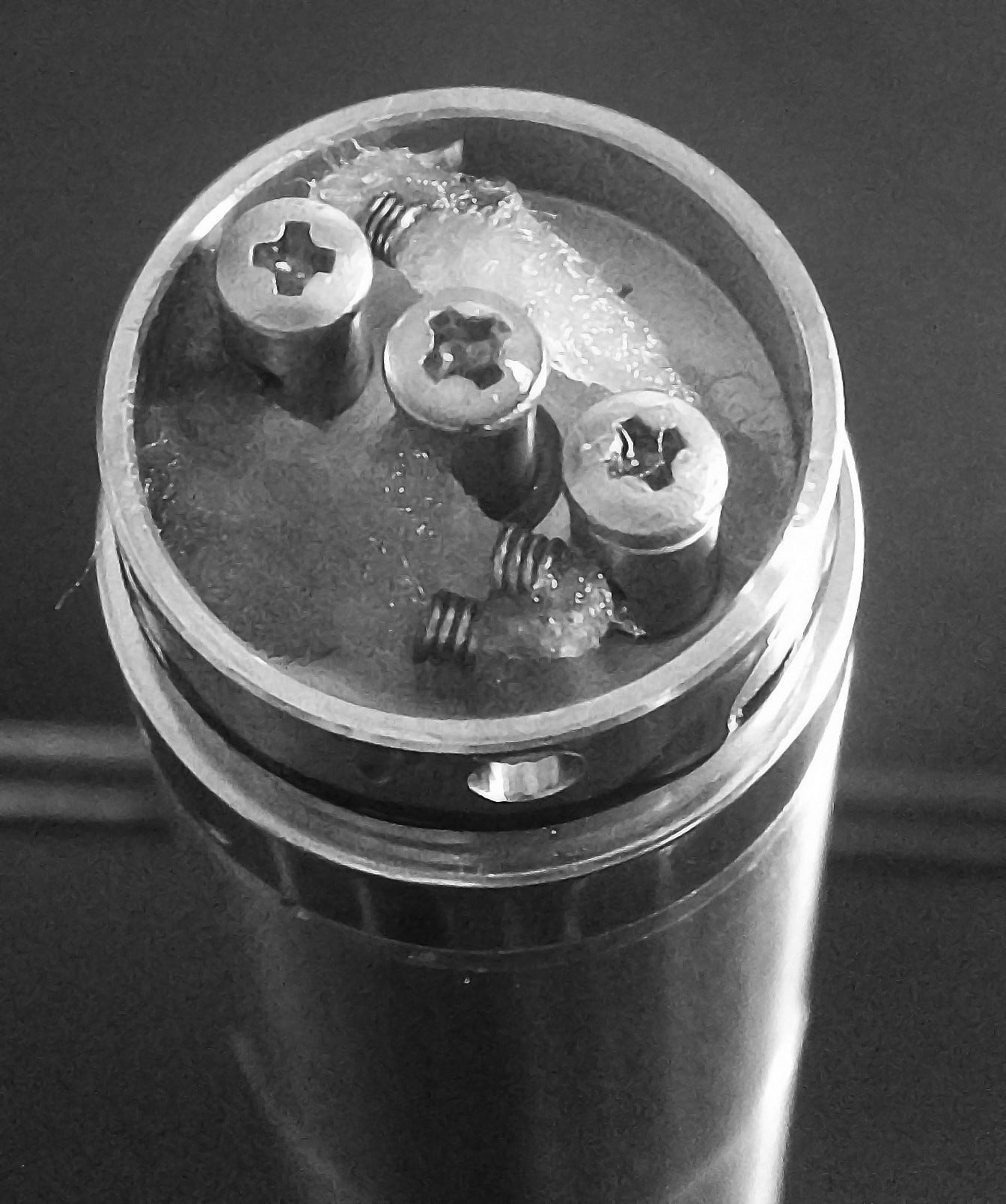

    Many tube mechs use a “hybrid” top cap: the atomizer’s positive pin makes direct contact with the battery’s positive terminal, with no intervening plate. This design is safe ONLY with atomizers whose positive pin protrudes clearly beyond the 510 threading and is fixed in place. An atomizer with a flush pin, a floating pin, or a pin that can be pushed up by the battery can let the battery’s positive terminal touch the atomizer’s threaded body, creating a dead short the instant the switch is pressed. The result can be a battery venting in your hand within seconds. Before using any atomizer on a hybrid mech: check that the pin protrudes, check that it does not move when pressed, and if you are unsure, do not use that atomizer on that mod. This single check prevents one of the most common mech mod accidents.

    What is the pre-use checklist?

    Before every session with a mech mod, run through this list. It takes two minutes and it is the difference between a hobby and a hazard:

    • Measure the coil’s resistance on a meter or regulated device. Never trust a build you have not measured, and never fire a build whose resistance you do not know.
    • Do the Ohm’s law math at 4.2V and confirm the current is below the battery’s CDR with margin.
    • Inspect the battery wrap, the switch, the threads, and the atomizer pin. Clean dirty contacts: poor connections cause hot buttons and misfires.
    • Check the atomizer pin protrusion if the mod is a hybrid.
    • Confirm the switch lock works, and lock the mod whenever it is in a pocket or bag. An unlocked mech can fire from pressure against other objects.
    • Stop at the first sign of trouble: a hot button, a hot tube, a sudden change in performance, or any unusual smell. Remove the battery and investigate; do not keep firing.

    Who should never use a mech mod?

    Beginners, casual vapers, anyone who does not want to do the math, and anyone who cannot reliably inspect and maintain a device. Mech mods offer no performance advantage over a good regulated mod: a regulated device delivers the same power, more consistently, with protections, for less effort. What mechs offer is simplicity, durability (no chip to fail, no screen to break), and aesthetics, and those are legitimate reasons to choose one, but they are preferences, not upgrades. If you want adjustable power without the risk, see box mods for beginners and temperature control mode. If you want to learn, start with a regulated mod, learn coil building and battery safety on it, and only consider a mech once the math is second nature and you can explain every rule on this page without looking. For choosing a battery in general, see choosing a vape battery and what sub-ohm vaping is.

    The National Academies’ 2018 e-cigarettes report reviewed more than 800 studies on the health effects of e-cigarettes.

    Frequently asked questions

    What are the benefits of using a mech mod?

    Simplicity, durability, and aesthetics: no chip to fail, no screen to break, and a direct, unfiltered connection between battery and coil. There is no power or flavor advantage over a regulated mod. The benefits are about the experience of the device, not its performance.

    Are mech mods safe for beginners?

    No. Mech mods have no safety protections of any kind. Safe use requires knowledge of Ohm’s law, battery ratings, coil building, and inspection routines. Beginners should start with regulated mods, which provide short-circuit, low-resistance, and over-discharge protection.

    How do you use a mech mod correctly?

    Measure the coil resistance, calculate the current draw at 4.2V, confirm it is below the battery’s continuous discharge rating, inspect the battery wrap and atomizer pin, and lock the switch when not in use. Repeat the checks every session. If any step is skipped, the device is not being used correctly.

    What types of mech mods are available?

    Single-tube (one cell), stacked-tube (two cells in series, 8.4V), parallel-box (two cells sharing the load), and squonk mechs (with a built-in e-liquid bottle). Series mechs are the most demanding and should only be used by people who fully understand the doubled voltage and its effect on current draw.

    What battery should I use in a mech mod?

    An authentic cell from a major manufacturer, bought from a reputable battery vendor, with a continuous discharge rating above your build’s calculated current draw, with margin. Never use a cell with a damaged wrap, and never trust a “pulse” or “max” rating. See our battery guide for verified cell ratings.
